Parameter
Potential Technology
H₂S in water
Online colorimetric / ISE
Ammonia (NH₃) in water
Online colorimetric / ISE
H₂S in gas
TDLAS / UV photometry
Hydrocarbon LEL
IR or catalytic bead
H₂S, NH₃, H₂O
TDLAS or FTIR
Ammonia (NH₃)
Online colorimetric
COD/TOC
UV-persulfate TOC analyzer
Parameter
H₂S in gas
Hydrocarbon LEL
Potential Technology
TDLAS / UV photometry
IR or catalytic bead
Parameter
H₂S in water
Ammonia (NH₃)
Potential Technology
Online colorimetric / ISE
Online colorimetric
Description

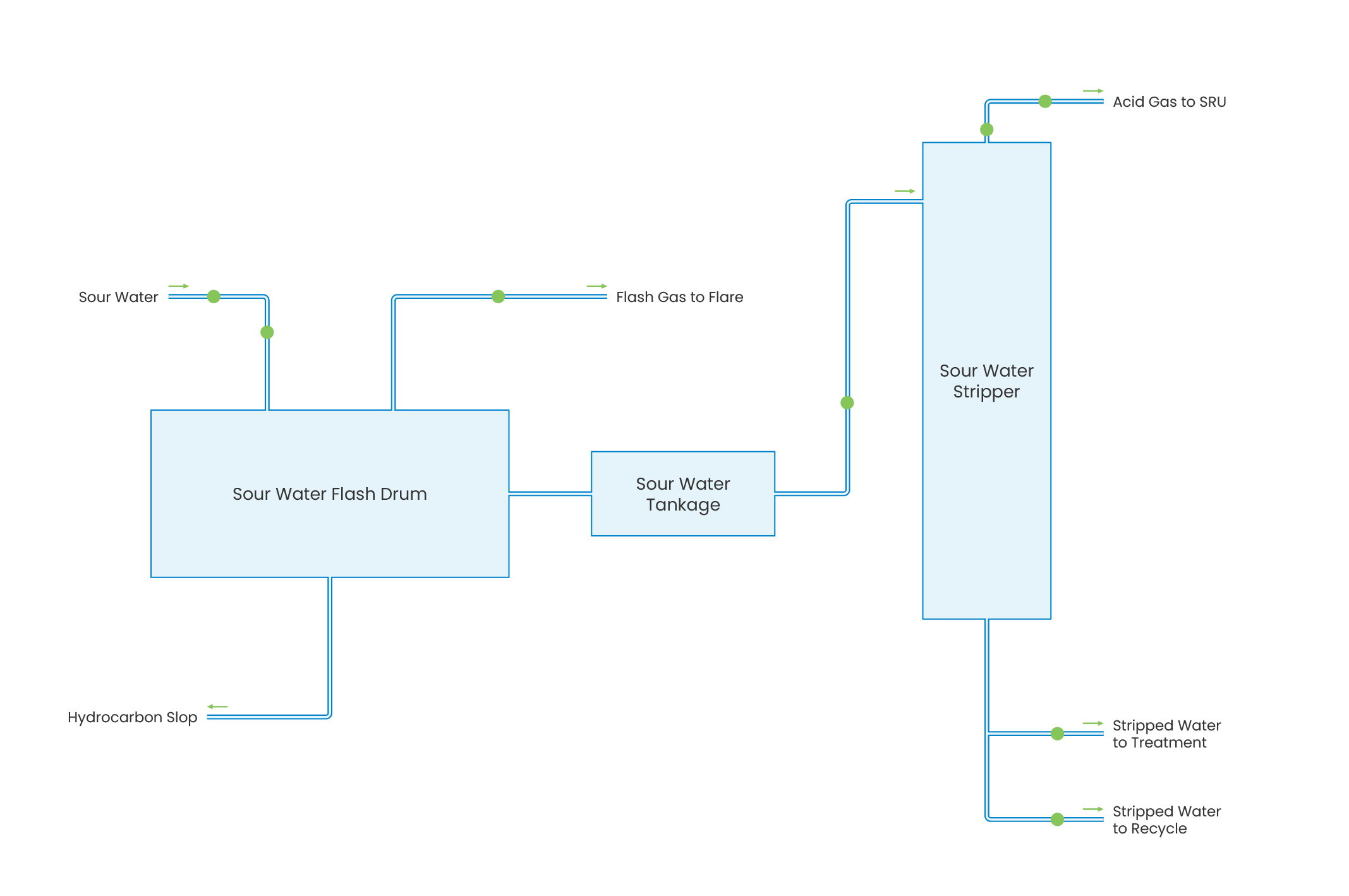

The sour water generated from several process units is stripped of its H2S and NH3 content in a sour water stripper (SWS). The stripped H2S is sent to the Sulphur Recovery Unit. The stripped water can be reused in appropriate services (such as in the CDU Desalting unit) to reduce the amount of purchased fresh water needed in the refinery. Sour water from the stabilization tank is heated in a heat exchanger and fed to the top of the tower. Steam (or air) from below the tower rises to remove the dissolved gases. The steam is typically produced by a reboiler (rather than injection) so as to limit water consumption.
