Parameter
Potential Technology

Feed Properties

Density Meter, Total Sulfur Analyzer, GC Analyzer

Hydrocarbon Composition

Gas Chromatograph (GC)

Sulfur Content

Total Sulfur Analyzer (UV Fluorescence)

Aromatics, Olefins

NIR Analyzer, UV Spectrometer

Water Content

Moisture Analyzer

Density

Online Density Meter

Viscosity

Online Viscometer

H2S Content

H2S Analyzer (Lead Acetate or UV)

Gas & Vapor Monitoring

Gas Analyzer (IR/UV)

VOC Emissions

Flame Ionization Detector (FID)

Corrosion Monitoring

pH Analyzer, Chloride Analyzer

Description

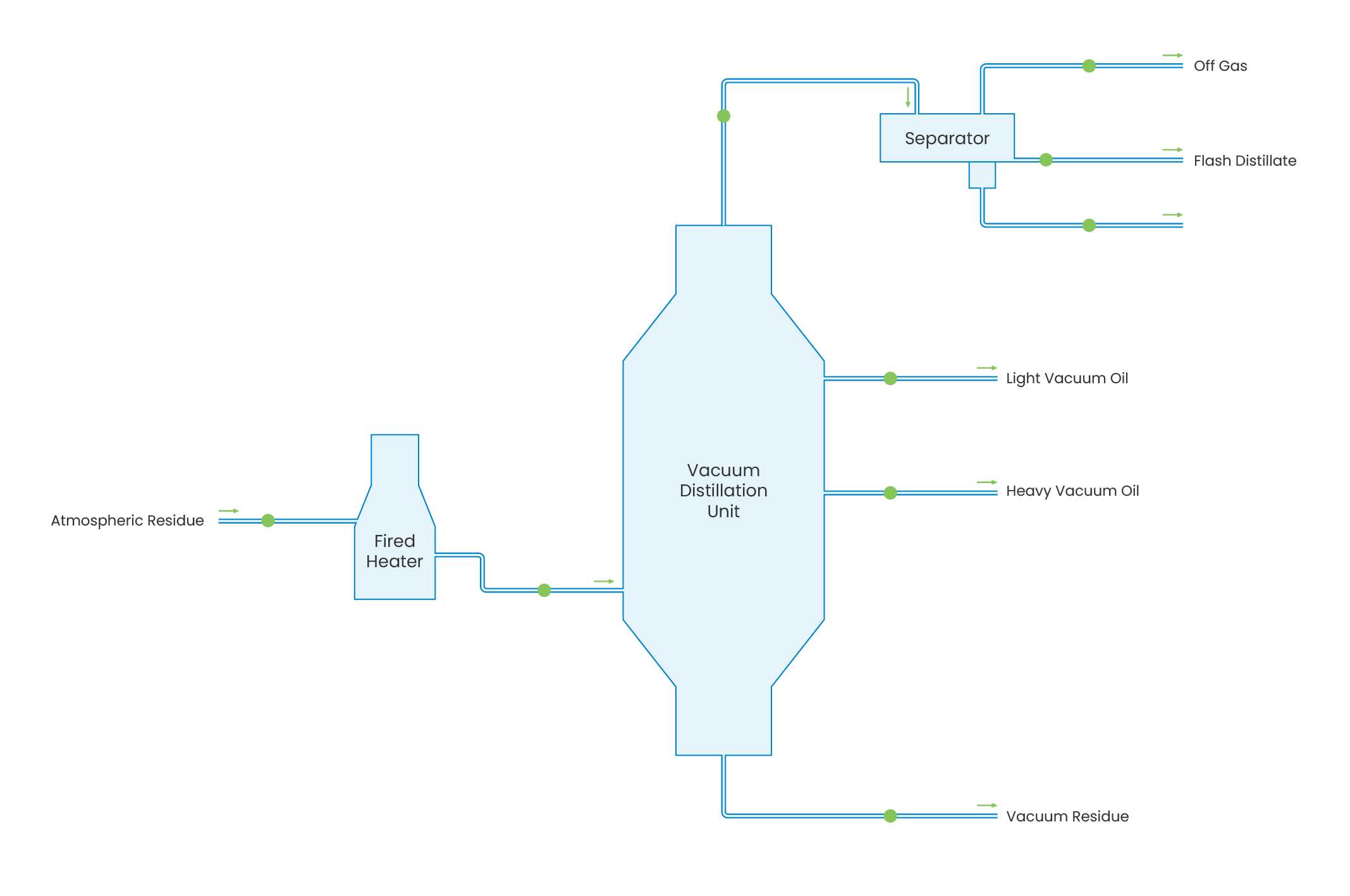

Vacuum distillation separates the residue from the atmospheric crude into a heavy residual oil and one or more heavy gas oil streams, thereby avoiding the extremely high temperatures necessary to produce these heavy distillates by atmospheric fractionation through operation at a reduced pressure (approximately 15-50 mm Hg absolute pressure). Atmospheric residue is heated in a direct-fired furnace and fed to the vacuum fractionator at 400ºC to 425ºC. The intermediate products from the vacuum distillation process are sent to hydrotreating, hydrocracking or a catalytic cracking unit.
