Parameter
Potential Technology
Hydrocarbon Composition
Process Gas Chromatograph (GC)
Moisture (H₂O)
Trace Moisture Analyzer (Fiber-Optic / Aluminum Oxide)
CO₂
NDIR Gas Analyzer
Hydrocarbon Dew Point (HCDP)
Hydrocarbon Dew Point Analyzer
Methane / BTU
Process GC / BTU Analyzer
NGL Composition
Process GC
Methane Purity
Process Gas Chromatograph
Ethane & Heavy Hydrocarbons
Process Gas Chromatograph
Parameter
Hydrocarbon Composition
Moisture (H₂O)
CO₂
Potential Technology
Process Gas Chromatograph (GC)
Trace Moisture Analyzer (Fiber-Optic / Aluminum Oxide)
NDIR Gas Analyzer
Parameter
Hydrocarbon Dew Point (HCDP)
Potential Technology
Hydrocarbon Dew Point Analyzer
Parameter
Methane / BTU
Moisture
Potential Technology
Process GC / BTU Analyzer
Trace Moisture Analyzer
Description

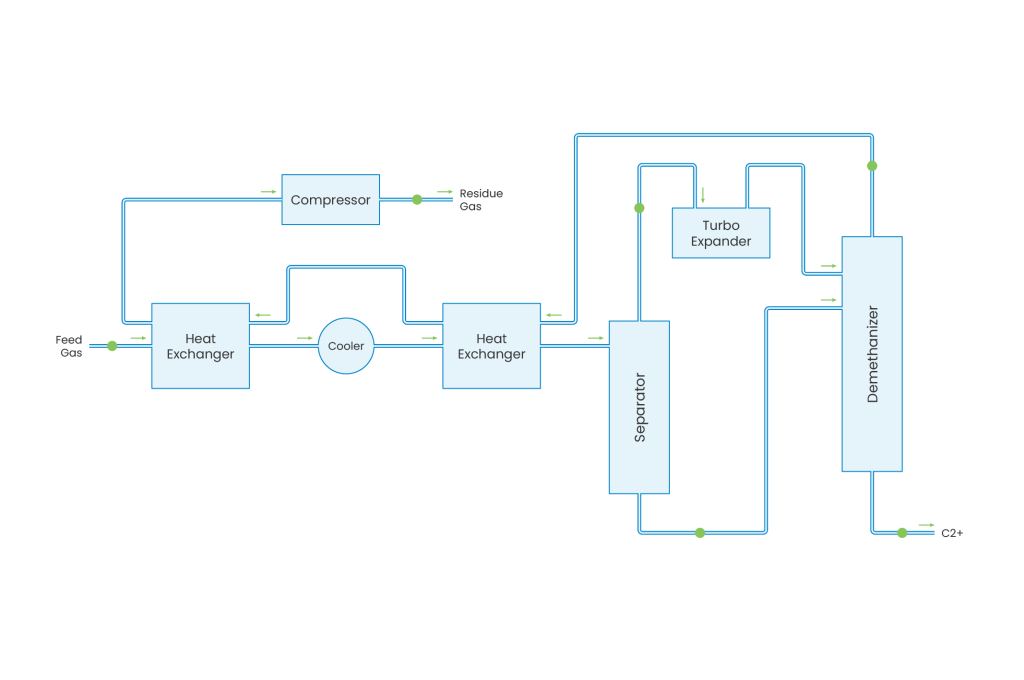

The NGL Recovery Unit is a key midstream gas processing step designed to recover valuable natural gas liquids (NGLs) such as ethane, propane, and heavier hydrocarbons from natural gas. In this process, the feed gas is cooled through heat exchangers and refrigeration, then expanded in a turbo-expander to achieve cryogenic temperatures that condense heavier hydrocarbons. The resulting two-phase stream enters a separator and demethanizer, where methane-rich residue gas is separated and routed to sales gas compression, while the liquid hydrocarbon stream is sent to downstream fractionation for further separation. Efficient NGL recovery improves gas heating value control, maximizes liquid product recovery, and enhances overall plant economics.
